Standard version
Measurement range: 0.001 to 99 ohms, auto-ranging Peak voltage across capacitor under test: 50mV or less Power supply: 2x AA cells which can be NiMH rechargeables Controls: Single push button for power on/off Dimensions: 3.1 x 4.6" (79 x 117mm) Microcontroller: PIC16F15354 Features* Tests electrolytic capacitors in circuit, & test leads are non-polarized. * Automatic power off when reading is unchanged for 5 minutes. * Low battery voltage warning ('bA' flashes on displays every 2 seconds). * Big, easy to read 0.56 inch (14mm) blue LED displays. |
 |

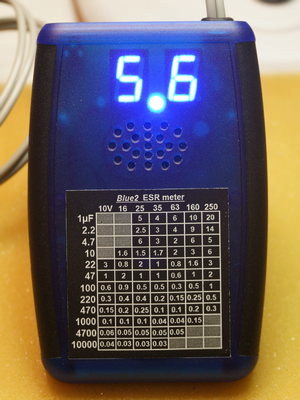

Talking version This
meter is exactly the same as
the standard version, except that it says
what's on the displays. This is for technicians who already know what
are good and suspect ESR readings without looking at the chart of
typical ESR figures.
The only functional difference is that the speaker volume is adjusted by holding the button down for a few seconds until the volume setting is displayed, and the volume changes by one step for each button press, including muting the sound. |
