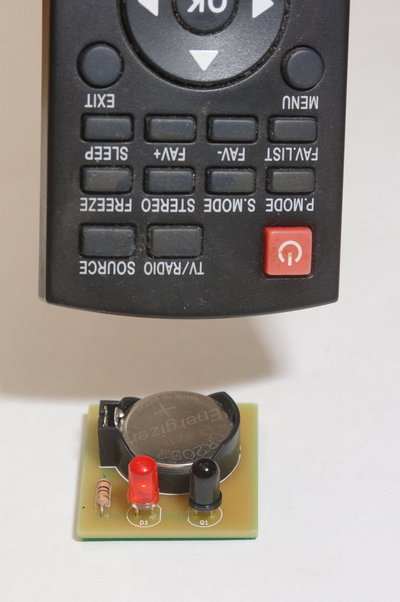

Bob's Remote Control Checker
There are times when you simply want to
know if an infrared remote control is
actually working, e.g. after repairing its rubber keypad. This little checker has
only four components including a lithium 'coin' cell.
actually working, e.g. after repairing its rubber keypad. This little checker has
only four components including a lithium 'coin' cell.
Click here for the documentation in a .pdf file
Click here for a .pdf image of the copper side of the PCB suitable for
making your own using the toner-transfer technique. It must print
out as 30 x 33mm.
Click here for a zip file containing the gerber files which a
PCB company could manufacture some boards from.
