How to remove the MP3-05(G) player from your 2009 Hyundai Getz

(and replace it with a better aftermarket one)

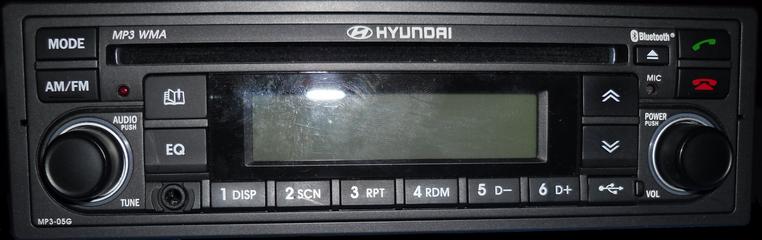

If you've got one of these factory-installed players and you can't take any more of:

"Random play" from a USB drive which constantly plays some tracks and you never hear others (all in the same folder).

A very basic display which goes blank or into a mode you don't want and stays like that when you play an MP3 file which doesn't have ID3 information.

Constant (often partial) repeat of one track when you first drive the car.

Jumping to another track when you start the car (in random play mode).

Random complete resets which lose all your radio and other settings.

Quickly flattening your mobile phone battery because this unit forces the Bluetooth Hifi Streaming to keep starting even if you're not listening to it.

Flakey Bluetooth performance including regularly failing to connect to your phone, the person you're talking to barely being able to hear you, not correctly downloading your phone's phonebook, and the Bluetooth symbols not appearing on the display even though your phone's connected.

Having this unit constantly trying to pair with every mobile phone in the vicinity, making it almost impossible to use a separate Bluetooth handsfree unit instead of it.

You're at the right page because I've been through it all too. :-(


Step 1: Remove the glovebox 'stops'

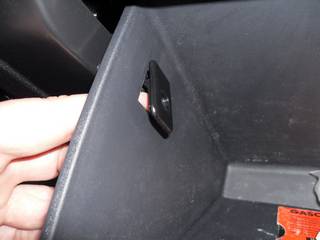

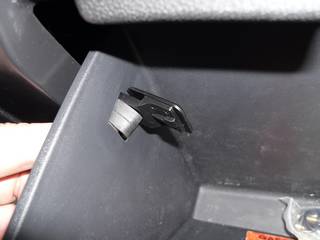

First completely empty the glove box (so as not to damage the hinges after this step). Then push the glove box slightly forward, push the stop from the outside and slide it towards you. Once it's partly free, you can slide the rubber part out through the hole and put it in a safe place. Same on the other side. Then carefully let the glove box hang down on its hinges.

Step 2: Remove the stereo's plastic surround

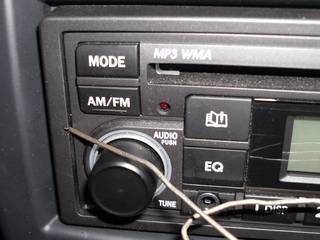

Poke a moderately thick paper clip into the hole and gently jiggle it to lever the end of the surround off.
Once free, the other end of the surround should detach too.

Step 3: Pull out the rear 3-pin connector

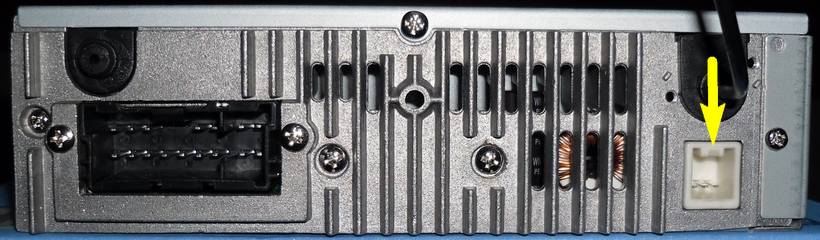

Reach through the glovebox opening with your left hand and with your fingers locate the small connector at the end of the player closest to you. Push down on its clip as the arrow shows, and pull it out. This the connection to the steering wheel controls and the wires are not very long. Only the most up-market aftermarket players have steering wheel control capability and they usually need an additional expensive interface box, so you'll probably lose that function.

Step 4: Release the front retaining clips

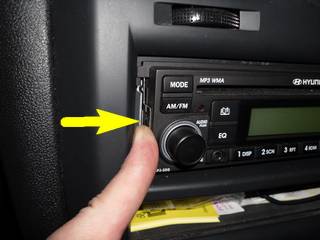

Reach through the glovebox opening with your left hand and push the rear left corner of the player towards you. At the same time, push the left side clip in the direction of the arrow until it releases and the player moves forward slightly. Then with your left hand's fingers, find the rear right-hand corner and do the mirror-image operation with the other clip. Repeat with the left side if it re-locks.

Step 5: Remove the player

Once the front clips are released, wiggle the back of the player from side to side with your left hand as you push it forward. Mine had a blob of heavy sound-deadening gunk between it and its cage, and I had to use a fair bit of force to free it. Then pull the player out of its hole and unplug the antenna and multi-pin connectors, and you can put it away until you sell the car (that brought a smile to my face).

Installing a replacement player

The easiest, neatest and fastest way to connect a new player (aka head unit) to your Getz is by using adapter harnesses. First you need to get an Aerpro APP085 harness which converts from the Getz's stereo connector to two ISO connectors (Click here to see it).

DO NOT try to use the APP086 shown for "Getz 2005 onwards" in the Aerpro catalog, because their documentation is wrong and the connector is not for a Getz, as I found out the hard way.

Next you need to get a second adapter harness to go from the ISO connectors to your chosen replacement player: click here to see the Aerpro range.

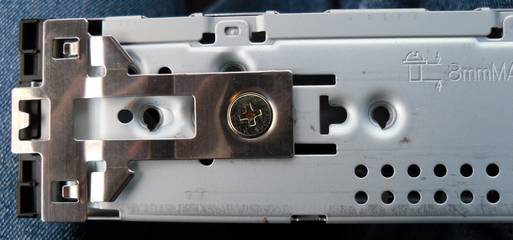

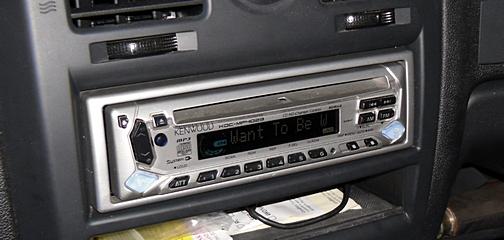

Then you need to install your new player. The details will vary from installation to installation and you need to work that out for yourself. In my case, I installed my old faithful Kenwood KDC-MP4023 from my earlier car by transferring the Hyundai mounting clips onto it after flattening the protrusions on the clips with pliers.

Then I connected it to the APP085 loom with an APP8KE one, plugged in the antenna and slotted the unit into the hole.
It still sounds great (better than the MP3-05G), functions perfectly and has none of the irritating habits of the Hyundai unit. :-)


Don't forget to clip the glovebox stops back into place after you finish!

If you need a Bluetooth handsfree unit, Aldi sometimes has some good ones on special very cheap.


I've presented this information as accurately as I can, but there may be unintentional errors and/or omissions. I will not be held liable for any injury to you or damage to your car or its warranty, or any player caused by following the above information. If you are not familiar with working on cars and are unaware of the risks of injury and damage from working on them, please disregard this web page.
