The original LOPT / FBT Tester Page.....

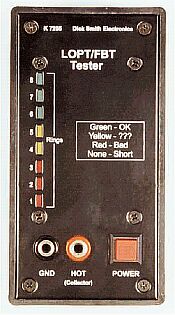

Casio QV-10A photo of the LOPT/FBT Tester!

This is the Dick Smith Electronics K7205 kit

They no longer make any kits

Click to download the complete K7205 kit notes as an Adobe Acrobat file! (370KB)

Click here to download the Español translation of the kit notes as a 260KB zip file

A big "GRACIAS!!" to Fernando Flores Bonilla for making this available.

You need Adobe Acrobat Reader to view this file, so if you don't already have it, click on the logo and download it for free.

Background...

This little instrument identifies faults in horizontal output stages by doing a 'ring' test, i.e. it applies pulses to the LOPT / FBT primary circuit, and counts the number of damped oscillations or 'rings' produced. For each 'ring' down to about 15% of the test pulse amplitude, one LED in the 'bargraph' lights up... nearly all faults will greatly reduce the number of 'rings' and give a very low reading.

It can be used on both monitors and TVs because it's not frequency-sensitive, and the test signal amplitude is only 650mV- low enough not to forward-bias semiconductors in the circuit.

To do a basic test, you connect the test leads between chassis and the HOT collector... if more than 4 LEDs illuminate, the horizontal output stage is probably OK. It can check LOPTs / FBTs out of circuit if broken-down components prevent an in-circuit test.

It can't show up breakdowns which only occur at full operating voltage, and it has no facility for measuring EHT voltages etc... but then again it only costs a tiny fraction of the price of instruments that can! In general it will show up about 80% of failures in horizontal output stages, and is also useful for checking deflection yokes, switching power supply transformers and other high-frequency high-Q inductive components.

Brief Specifications

Measurement range: 0 to 8+ 'rings' of inductor/transformer under test
Peak test voltage: 650mV
Power supply: 6V DC (4 x 'AAA' cells)
Controls: Push on/push off power switch
Dimensions: 2.7 x 5.2 x 2.2 inches (69 x 132 x 56mm)

Features

* Can generally test LOPT/FBTs in circuit, if no other components are faulty.
* Also useful for testing deflection yokes and switching power supply transformers.
* No fiddling with 'threshold' controls etc; readout is a clear 'bargraph' display.
* Kit instructions contain a huge amount of information and hints for using the
tester and diagnosing horizontal deflection stage faults.

Feel like building your own?

It's not hard. Use 5mm LEDs and simply drill holes into the box lid for them. Download the PCB positive artwork as a .pdf file by right-clicking here. You can print this onto transparency film with a laser printer, but first print it onto paper and make certain that the board dimensions are exactly 2.0 x 3.0 inches. Adjust your printer settings if necessary.

To use the toner transfer method, right-click here to download the mirror-image version of the artwork. "Thank you!" to KzCorp for making this file available. As above, make certain that the printout is 2.0 x 3.0 inches before you make a board from it.
